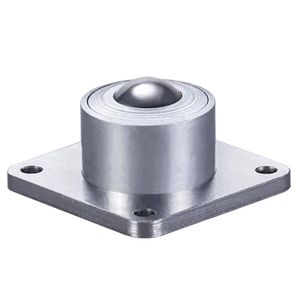

MF Series – Bottom Flange Ball Transfer Units

Standard Materials - Chrome steel bearings, zinc plated body & cap. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ BALL ⌀ mm A B C D ExE FxF G H £ from Files MF12 55 25 0.227 0.103 1/2" 12 0.941 ❋ 23.9 ❋ 0.813 20.7 0.677 17.2 0.138 3.5 1.750 ● 44.5 ● 1.375 34.9 0.125 3.2 2 x 0.141 2 x 3.6 £ 0 PDF Step MF15 132 60 0.108 0.049 5/8" 15 0.945 24 0.787 20 0.630 16 0.197 5 1.772 45 1.260 32 0.197 5 4 x 0.181 4 x 4.6 £14.16 PDF Step MF22 397 180 0.390 0.177 7/8" 22 1.417 36 1.201 30.5 1.023 26 0.177 4.5 2.250 57.2 1.750 44.5 0.197 5 4 x 0.219 4 x 5.6 £17.57 PDF Step MF30 772 350 1.105 0.501 1 3/16" 30 1.772 45 1.449 36.8 1.193 30.3 0.256 6.5 3.000 76.2 2.281 57.9 0.250 6.3 4 x 0.281 4 x 7.1 £22.89 PDF Step MF45 1323 600 2.509 1.138 1 3/4" 45 2.441 62 2.106 53.5 1.772 45 0.335 8.5 3.346...
