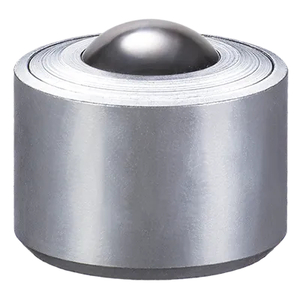

MG Series Ball Transfer Units for Medium-Duty Applications

Standard Materials - Chrome steel bearings, zinc plated body & cap. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ Ball Ø (mm) A B C D £ from Files MG8 29 13 0.037 0.017 5/16" 8 0.709 18 0.472 12 0.394 10 0.079 2 £ PDF Step MG10 55 25 0.062 0.028 1/2" 10 0.787 20 0.650 16.5 0.531 13.5 0.118 3 £6.85 PDF Step MG12 55 25 0.077 0.035 1/2" 12 0.866 ❋ 22 ❋ 0.689 17.5 0.551 14 0.118 3 £5.97 PDF Step MG15 132 60 0.108 0.049 5/8" 15 0.945 24 0.787 20 0.591 15 0.197 5 £8.11 PDF Step MG22 397 180 0.390 0.177 7/8" 22 1.417 36 1.201 30.5 1.023 26 0.177 4.5 £8.20 PDF Step MG30 772 350 0.739 0.335 1 3/16" 30 1.772 45 1.449 36.8 1.193 30.3 0.256 6.5 £10.62 PDF Step MG45 1323 600 2.072 0.940 1 3/4" 45 2.441 62 2.106 53.5 1.772 45 0.354 9 £29.86 PDF Step MG60 3307 1500 8.0...
