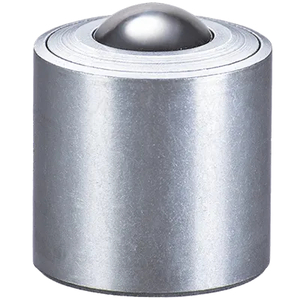

MI Series Medium-Duty Ball Transfers

Standard Materials - Chrome steel bearings, zinc plated body & cap. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Nylon main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ Ball Ø (mm) A B C D E F £ from Files MI12 55 25 0.110 0.050 1/2" 12 0.866 ❋ 22 ❋ 0.945 24 0.807 20.5 0.138 3.5 M8 x 1.25 M8 x 1.25 0.197 5 £ PDF Step MI15 132 60 0.163 0.074 5/8" 15 0.945 24 1.102 28 0.906 23 0.197 5 M8 x 1.25 M8 x 1.25 0.315 8 £9.18 PDF Step MI22 397 180 0.560 0.254 7/8" 22 1.417 36 1.594 40.5 1.417 36 0.177 4.5 M8 x 1.25 M8 x 1.25 0.394 10 £10.21 PDF Step MI30 772 350 1.014 0.460 1 3/16" 30 1.772 45 1.843 46.8 1.587 40.3 0.256 6.5 M8 x 1.25 M8 x 1.25 0.394 10 £15.23 PDF Step MI45 1323 600 2.601 1.180 1 3/4" 45 2.441 62 2.500 63.5 2.146 54.5 0.354 9 M8 x 1.25 M8 x 1.25 0.394 10 £40.13 PDF Step MI76 2200 1000 13.360 6.060 3" 76.2 5 127 3.992 ...
