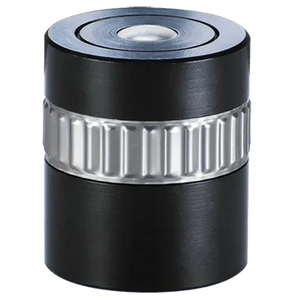

MN Series – Housed Spring Loaded Ball Transfer Units

Standard Materials - Chrome steel bearings. Precision machined zinc-plated body & back eletro-phoretic housing. Material upgrade options: Stainless Steel Balls All Stainless Steel Parts Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Suport Load (lb) Suport Load (kg) Deflection LOAD AT MAX DEFLECTION lb LOAD AT MAX DEFLECTION kg BALL ⌀ ″ BALL ⌀ mm A B C D E £ from Files MN12 88 40 0.06 1.5 198 90 1/2" 12.7 0.941 23.9 1.181 30 0.965 24.5 1.122 28.5 0.413 10.5 £ PDF Step MN16 132 60 0.06 1.5 243 110 5/8" 15.8 1.177 29.9 1.417 36 1.201 30.5 1.358 34.5 0.413 10.5 £36.56 PDF Step MN25 220 100 0.06 1.5 386 175 1" 25.4 1.567 39.8 1.890 48 1.594 40.5 1.831 46.5 0.413 10.5 £42.01 PDF Step MN30 739 335 0.06 1.5 1290 585 1 3/16" 30 1.965 49.9 2.362 60 1.988 50.5 2.303 58.5 0.484 12.3 £92.93 PDF Step MN12A 88 40 0.06 1.5 198 90 1/2" 12.7 0.941 23.9 1.181 30 0.965 24.5 1.122 28.5 0.413 10.5 £34.61 PDF Step MN16A 132...
