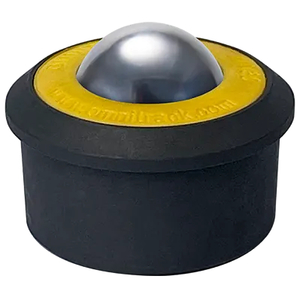

MV / MW / MX Series – Air Cargo Ball Unit Ball Transfer Units

MV Imperial Series – Moulded scraper cap reduces weight & noise levels during operation. Self-cleaning multiple drain slots. Compact inch series dimensions ideal for high-density ball cargo decks.

MX Cargo Series – Steel scraper cap protects against impact damage from misaligned loads. Multiple debris/drain channels rapidly eject contamination & fluid.

MW Washdown Series – Internal stainless steel liner cup provides a cost efficient alternative to all stainless steel construction. Effective corrosion resistance & fluid draining in washdown applications. Also available in all stainless steel. Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) Weight BALL ⌀ ″ Ball Ø (mm) A A B B C D E £ from Files MV30 772 350 0.639 0.29 1 3/16" 30 1.772 45 1.811 - 1.831 46 - 46.5 0.543 13.8 0.555 14.1 0.217 5.5 1.969 50 1.37 34.8 £ PDF Step MX30 772 350 0.783 0.355 1 3/16" 30 1.772 45 1.811 - 1.831 46 - 46....
