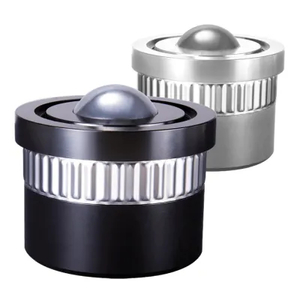

Omnitrack 88 & 98 Series Precision Ball Transfer Units

Standard Materials - AISI 52100 high chrome steel balls & internal load bearing components. “Anti-Oxide" electrophoretic coated housing. Material upgrade options: Stainless Steel Balls Stainless Steel Internal Parts All Stainless Steel Parts Phenolic resin main ball Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Load (lb) Load (kg) BALL ⌀ ″ BALL ⌀ (MM) A B C D E F £ from Files 8810 120 50 1/2" 12.7 0.866 22 0.472 12 0.234 6 0.828 21 0.945 24 0.094 2.4 £ PDF Step 9820 500 225 1" 25.4 1.772 ❋ 45 ❋ 0.594 15 0.551 14 1.578 40 1.929 49 0.272 6.9 £41.28 PDF Step 9830 850 385 1" 25.4 1.969 ❋ 50 ❋ 0.630 16 0.591 15 1.734 44 2.165 55 0.339 8.6 £47.46 PDF Step 9840 2500 1100 1 1/2" 38.1 2.559 ❋ 65 ❋ 0.787 20 0.984 25 2.362 60 2.756 70 0.484 12.3 £59.96 PDF Step 9850 5000 2200 2" 50.8 3.937 ❋ 100 ❋ 0.945 24 1.181 30 3.750 95 4.331 110 0.618 15.7 £185.86 PDF Step 8810A 120 50 1/2" ...
