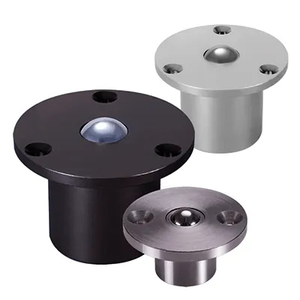

Spring-Loaded Flange Ball Transfer Units Omnitrack

Standard Materials - AISI 52100 high chrome steel balls & Anti-Oxide electrophoretic coated machined steel housing.Spring mechanism parts in carbon spring steel irrespective of material upgrade options below. Material upgrade options: Stainless Steel Balls Stainless Steel Internal Parts All Stainless Steel Parts Switch measurements: Metric (mm/kg) Imperial (inch/lb) Part Supports Load (lb) Supports Load (kg) Deflection (″) Deflection (mm) Load at max deflection (lb) Load at max deflection (kg) BALL ⌀ ″ BALL ⌀ (MM) A B C D E F £ from Files 8601 26 12 0.125 3.3 101 46 1/2" 12.7 1.000 25.4 1.000 25.4 0.197 5 1.969 50 1.422 36 2 x 0.203 2 x 5.1 £ PDF Step 9620 200 91 0.188 4.8 414 188 1" 25.4 2.000 50.8 2.188 55.5 0.234 6 3.150 80 2.563 65 3 x 0.234 3 x 6.1 £57.86 PDF Step 9630 500 227 0.094 2.4 809 367 1" 25.4 2.500 63.5 2.375 60.3 0.234 6 3.938 100 3.156 80 3 x 0.318 3 x 8.1 £60.27 PDF Step 9640 992 450 0.391 10 2116 960 1 1/2" 38....
