30A Solar Charge Controller

All Stocks in NZ! Fast Dispatch with Tracking!

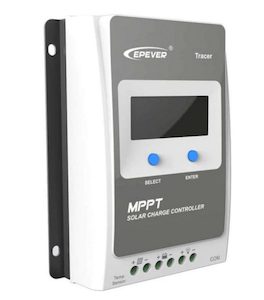

This auction is for one brand new Tracer MPPT Solar Charge Controller 12V 24V Auto Switch LCD Solar Regulator
Solar Charge Controller MPPT 30A Current
Multiple load control modes: manual control, lighting ON/OFF, light On Timer, and test mode.
Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99.5%
Wide MPP operating voltage range.
12/24VDC automatically identifies system voltage.
LCD panel display design, dynamically displaying the tool's operating data and working condition.
With the RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
Available for EPsolar network module (eBox--01)with protocol TCP/UDP/SNMP, to realize internet connection.
Available for PC monitoring and external display unit connecting like MT50 and so on, realizing real-time data checking and parameter setting.
Support software upgrade.
Product Specification:
Nominal System Voltage 12/24V Auto
Battery Input Voltage Range 8V ~ 32V
Max Charge/ Discharge Current 30A
Max. PV Open Circuit Voltage 100V (At minimum operating environment temperature)
Max. PV Open Circuit Voltage 92V (At 25 DegC operating environment temperature)
MPPT Voltage Range 2V ~ 72V
Max Rated Charging Power (30A), 390W (12V), 780W (24V)
Max. PV Array Input Power 1170W (12V), 2340W (24V)
Wiring Connections, Solar /-, Battery /-, Power Output /-, Temp Sensor, RJ45
Working Environment Temperature Range - 25 to 45 DegC
Humidity Range
