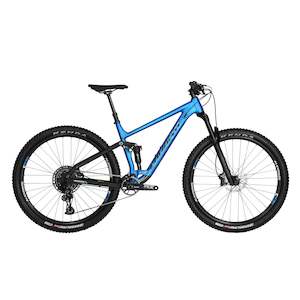

AVANTI HAMMER S 1

Details

The Hammer S line of 29er, 130mm trail bikes, are engineered in Germany to be super-light, but tough enough to handle everything you throw at them.

With a smart geometry-adjusting headset, you can swap in your 27.5 wheels and keep the same geometry, for even burlier ride days.

All bikes in the range feature Rockshox front and rear suspension, Syncros dropper posts, Shimano hydro brakes and SRAM's excellent Eagle 12 speed drive trains.

SPECIFICATIONS
AT A GLANCE
FRAME
- Alloy Ultralight, 130mm travel, tapered headtube
SUSPENSION
- Fr: Rockshox Recon Gold RL Debon Air 130mm, Rr:Rockshox Delux Select RT Debon Air
COMPONENTS
- 12sp SRAM NX Eagle, Shimano 4 piston brakes
WHEELS
- Alex EXR27 rims with Alloy thru axle hubs
WHAT'S NEW
- Long travel dropper post
KEY FEATURES
- German-engineered light alloy 130mm travel 29er frame with internal cables and 27.5 compatibility
- Rockshox Recon Gold RL Boost fork with Debon Air damper
- SRAM NX Eagle 12 speed components for bullet proof shifting
- Shimano M420/401 hydraulic 4 piston brakes
- Syncros cockpit with internally routed dropper post
GRIPS

Syncros Pro Lock-on
HANDLEBAR

Syncros Hixon 2.0 31.8mm with 12mm rise 9 deg sweep
HEADSET

Integrated Threadless 1 1/8th - 1.5inch (with extra lower geometry adjust cup for 27.5 )
SADDLE

Syncros ER2.5
SEATPOST

Syncros Duncan Dropper 31.6mm with internal cable routing
STEM

Alloy 31.8 7 deg rise
BOTTOM BRACKET

SRAM DUB Pressfit
BRAKE LEVERS

Shimano MT401hydraulic
BRAKES

Shimano MT420 hydraulic 180mm rotors
CASSETTE

SRAM PG-1230 Cassette 11-50T 12 speed
CHAIN

SRAM NX Eagle
CRANKSET

SRAM NX Eagle DUB 32T
REAR DERAILLEUR

SRAM NX Eagle
SHIFTERS

SRAM NX Eagle 12sp
FORK

Rockshox Recon Gold RL Debon Air 130mm air spring 1.5inch taper rebound adjust lock-out Boost 110 15mm axle
FRAME

AL-6061 Ultralight Butted tubing 130mm travel cartridge bearing pivots 1.5inch tapered headtube PF92 BB 12 x 148m
SHOCK

Rockshox Delux Select RT Debon Air rebound adjust
EXTRAS

Prime Aero CH -LD-MINI chain guide
HUB COLOUR

Alloy 148x12mm 32H
FRONT HUB

Alloy 110x15mm 32H
RIMS

Alex EXR 27 Double-wall Alloy with eyelet 32H Tubeless Ready
SPOKES

Stainless steel
TYRES

Kenda Regolith Pro 29 x 2.4inch Tubeless Ready 120tpi
WHEEL SIZE

29

Please note product specifications are subject to change.
