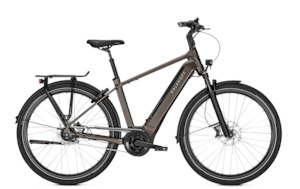

2023 Kalkhoff Image 5.B Move+
The safe and versatile go-to bike for your cycling day. If you’re a person who needs to travel the urban jungle on a daily basis, you can’t help but love the stunning integrated design, exceptional comfort and incredible versatility of the Image 5.B Move. Every component is designed for maximum comfort and complete safety. And yet, with its load capacity of up to 170 kg, this e-bike is also a cargo-carrying workhorse. It’s your trusty multi-purpose machine for any challenge – in or outside the city. MOTOR/BATTERY SPECIFICATIONS
- MOTOR: Bosch Performance Line, 36 V / 250 W / 65 Nm
- DISPLAY: Bosch Intuvia LCD, with control panel and walk assist
- BATTERY: Bosch PowerTube Li-Ion 36 V / 17,4 Ah (625 Wh)
- RANGE: up to 80 km
- CHARGER: Bosch, 2A SPECIFICATIONS
- SHIFTING SYSTEM: Shimano Nexus, 5-speed
- SHIFTER: Shimano Nexus
- CRANKSET: aluminium
- SPROCKET: Shimano
- GEAR RATIO: front: 38, rear: 27
- DRIVETRAIN: KMC Z1 EPT, anti-rust coating
- BRAKES: Tektro M530, 4-Piston/2-Piston, hydraulic disc brake
- BRAKE ROTORS: front: 180 mm, rear: 180 mm
- FRONT-LIGHT: Herrmans H-Black MR8, LED
- REAR-LIGHT: Trelock COB Line, LED
- FRAME: Integrale 0.6, Aluminium
- FORK: Suntour Mobie25 Air, lockout, 15 mm thru axle
- TRAVEL: 75 mm
- STEM: Concept EX, adjustable
- HANDLEBAR: Concept EX City Riser, Concept EX Ergo Riser
- GRIPS: Ergon GC10
- SADDLE: Selle Royal Essenza Plus
- SEATPOST: Patent XXL, suspension
- PEDALS: Comfort aluminium with anti slip protectionand reflector
- RIMS: Road Airline Plus, with eyelets
- HUBS: front: Shimano Alivio MT400, 15x100 mm with QR rear: Shimano Nexus, 5 speed
- TYRES: Schwalbe Big Ben Plus, 55-622
- FENDER: plastic, with edge protector
- CARRIER: Aluminium with Snap-IT System
- KICKSTAND: rear stand, adjustable
- LOCK: Trelock Balloon, 1 key for both locks, key removable
- PERMISSIBLE TOTAL WEIGHT: 170 kg
