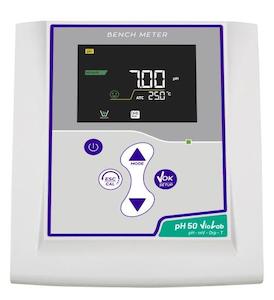

Giorgio Bormac pH 50 VioLab bench-top pH meter without electrode - 50101012
pH 50 VioLab DHS without pH electrode. Cable S7/BNC, temperature probe NT55, colored pH buffer solutions pH 7 and pH 4 and electrode holder. Professional bench instrument with innovative high definition color LCD display, with possibility of brightness adjustment. pH, mV, ORP measurement, with temperature display. Possibility to select the parameters you want to see on the display. The online guide in setup and calibration allows a simple and immediate use of the device. Automatic pH calibration with USA and NIST buffers up to 3 points and 2 points defined by the user. Automatic ORP calibration on 1 point. Indication with icons of the calibrated values. Measurement stability indicator and possibility to select 3 stability levels. All operations are constantly monitored and signaled to the operator via the colored LED above the display and self-diagnosis messages.
Measuring range: pH: 0.00. 14.00 (0.1 - 0.01 pH) mV: ± 1000 (1 mV) Temperature: 0. 100.0 ° C (0.1 ° C)
Supplied as standard: Electrode holder stand, colored buffer solutions, power supply and instructions for use.
With accessories, S7-BNC cable, NT 55 temperature probe, without electrode. Data sheet Regulations Regulations CE Performance Accuracy (pH) ± 0,02 Accuracy (Temperature) ± 0,5 °C mv measuring range (max.) 1000 mv measuring range (min.) - 1000 ORP measuring range (max.) 1000 ORP measuring range (min.) - 1000 ORP resolution 1 mV pH measuring range (max.) 14,00 pH measuring range (min.) 0 pH resolution 0,01 Temperature compensation 0,0..100,0 °C Temperature measuring range (max.) 100,0 °C Temperature measuring range (min.) 0,0 °C Temperature resolution 0,1 °C Working temperature (max.) 45 °C Working temperature (min.) 0 °C Feature Calibration report Yes DHS compatible Yes Display Backlight coloured high definition LCD Inputs BNC - RCA IP protection IP 54 Points of calibration ORP 1 Points of calibration pH 1..3 Stability criteria 3 levels Standard approved pH USA - NIST - 2 custom values Supply Power supply 100 - 240 V / 50 - 60 Hz Dimension and Weight Dimension (LxWxH) 160 x 140 x 45 mm Weight 380 g Informations Request Download
- Technical Datasheet
- Documentation
- User manual
- CE declaration
