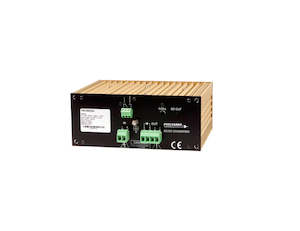

Polyamp PM150 SERIES DC/DC Converter

The Polyamp PM150 Series DC/DC Converter is a compact, reliable, and efficient power solution for industrial, railway, and telecommunications applications. Designed to deliver consistent performance, it ensures power reliability in demanding environments.

Key features include a wide input voltage range (10–270 V DC) and single output options from 12V to 48V DC, with power outputs ranging from 120W to 150W. The PM150 Series offers reverse input voltage protection, overvoltage protection (OVP), and an adjustable output voltage for precise control. Additional features include over/undervoltage alarm relays and optional inrush current limit for enhanced functionality.

The PM150 Series is fully encapsulated to meet IP20 standards and operates efficiently at up to 88%, with an operating temperature range of -25°C to 70°C (with derating). Versatile mounting options include wall, DIN rail, and 19" rack configurations, ensuring easy integration into a variety of systems.

The Polyamp PM150 Series is an ideal choice for dependable, efficient, and versatile power solutions.
