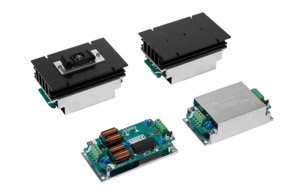

Cincon CQB100W-110SXX-CMFC(D) Series DC/DC Converter

The Cincon CQB100W-110S CMFC(D) Series is a high-performance range of 100W isolated DC/DC converters designed to deliver stable, regulated DC power from wide and fluctuating high-voltage DC sources. With a 4:1 input voltage range and fully regulated single outputs, the series provides dependable power conversion for demanding system environments.

Operating from a 43–160 Vdc input range (110 Vdc nominal), the CQB100W-110S series is available with single output voltage options from 12Vdc to 48Vdc, delivering up to 100W continuous output power with efficiency up to 91%. Built-in EMI filtering, low no-load power consumption, and fixed switching frequency help ensure predictable electrical performance and simplified system integration.

The converters feature a chassis-mount, baseplate-cooled design for fanless operation and effective thermal management. Comprehensive protection functions, high isolation strength, and compliance with international safety and EMC standards make the CQB100W-110S CMFC(D) Series a reliable solution for professional DC/DC power conversion applications.
