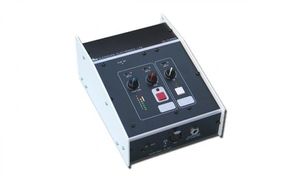

Glensound GS-CU008A Single Commentator's Box with 1 Talkback

The GS-CU008A is a popular general purpose mic and headphone interface. It's flexibility has resulted in various custom designs with multiple mic inputs, or multiple monitoring inputs. These options can interface with wireless systems, or be used for audio.
Inputs:
The front panel input is transformer balanced at microphone level with a selectable 48v phantom power switch. A small pot is on the front panel for adjusting gain control, and the mic on/off switch can also be set to act as a cough switch. For optimising the voice input, a band pass filter is used.
Outputs/Talkback:
The standard unit features a single transformer balanced programme output. The output level is configurable by a three position selector switch which would typically be used with the compressor / limiter active above 0dB. The limiter can also be turned off for a 0dB output. If the compressor / limiter is not required, but more headroom is, the user can select a -10dB output without compress...
