Submersible Drainage Pump: High Head, Rugged

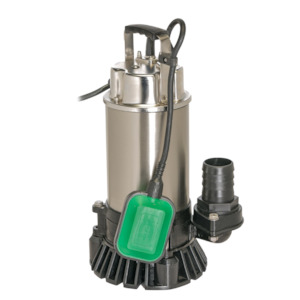

The MD750A submersible pump is an ideal pump for construction sites and industrial drainage as well as high head transfer applications.

A robust design and constructed of corrosion resistant materials it features a double mechanical seal in an oil chamber. It also works well in clean and salt water applications. Construction

- Float Switch for Run Dry protection
- Solid Stainless Steel Body
- Double Mechanical Seal
- Quality Carry Handle
- Impact resistant PVC Strainer Base
- Fitted with an agitator to reduce blockages Performance

- Continuous duty motor
- Thermal Overload protection
- IP68 protection
- Liquid temperature: 0-40°c
- Max Immersion Depth: 6m
- Maximum soft solids in suspension: 8mm
- 15m Head
- 300LPM (see the orange line on the performance curve)

Model

hp

kW

Outlet

Phase

Voltage

Max Solids

MD750A

1.0

0.7

50mm

1

220-240

8mm
1 Year Manufacturing Defect Warranty View Warranty Terms here.
