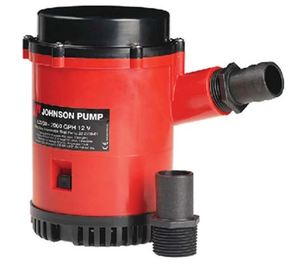

Johnson Heavy Duty Bilge Pump L2200

SPX Johnson Bilge Pumps are an ideal high performance, heavy duty pump designed to meet the tough demands of commercial and recreational duty. The L1600 may be automatically controlled with either an automatic switch AS888 or an electronic float switch or the new Ultima Switch. CE-approved. Specifications:

Max Head: 5.2m
Max Flow rate: 130 L/min
Connection port: 1x⅛" & 1x¼""
Diameter: 108mm
Height: 177mm
Weight: 2.7kg
Features:

Heavy duty, 12-pole double ball bearing motor
Liquid cooled for extended motor life
Quality engineered mechanical/lip seal
ISO 8849 Marine and CE standards
Easily interchangeable with most similar bilge pumps
CE-approved
Removeable check valve included
Design Features:

L2200 - Mechanical seal
Shaft: Stainless steel (SS2343)
Voltage: 12 V or 24 V DC
Hose size: 1x⅛" & 1x¼"
Amperage Fuse
12V 7.5 amp 12 amp
24V 4.5 amp 6 amp
