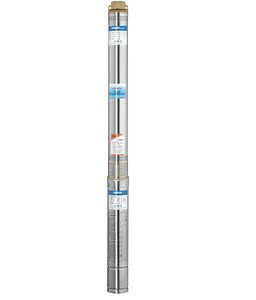

3" Bore - Submersible Pump-3SHM Series
The 3SHM series 3" bore pump is ideal for deep well bore applications for water transfer where a 3" pump is needed. The 3SHM pump features a stainless steel outer shell wet end and shaft with PC & POM impellers and diffusers, brass motor coupling flange and an incorporated non-return valve.
Supplied complete with motor and surface mounted control box which incorporates: Run capacitor, isolator switch and manual reset overload.
Pump Recommendations:
Non Return Valve
MP-S1 Plus Pump Controller for pump protection
Please see dropdown menu for option and more information below:
MP-S1 Plus Controller
Specifications:
220-240v
Single Phase
Outlet size: 1 Inch (25mm) BSP
Flow Vs Head Model hp kW LPM 0 5 10 15 20 25 30 35 40
3SHM1.8/14
0.5
0.3
Head(m)
59
57
56
51
48
46
41
37
25 3SHM1.8/20 0.7 0.5 Head(m) 84 82 80 73 70 66 59 53 36 3SHM1.8/27
1.0
0.7
Head(m)
113
110
108
98
94
89
79
71
48 3SHM1.8/37
1.5
1.1
Head(m)
154
152
148
135
129
122
109
98
68 Pump Features:
Maximum Pump OD: 74mm
Maximum Water temperature: 35°C, ph6.5-8.0
Max temperature range: 0-35 Degrees
Maximum immersion: 80m
Motor Features:
Max thrust: 1500N
IP68 motor protection
Insulation: Class F
Upper bracket, Outlet: Pressed brass
Service factor: S1
Minimum cooling speed: 8 CM/S
RPM: 2800
Dielectric Oil Filled
Exterior Shell, Shaft and clamping system: AISI 304 S/steel
Spline shaft to NEMA standards
Maximum starts per hour: 30
Applications:
Water supply from bore wells or reservoirs
Ideal for domestic use
Garden and Irrigation
One Year Back to Base Warranty
