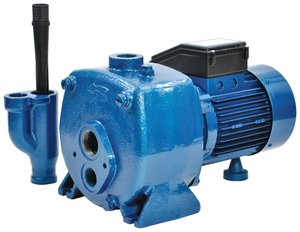

Davies JAP Deep Well Series
Max pumped liquid temperature: 60°C.
Max ambient temperature: 40°C.
Complete with E30 ejector. (if E20 ejector required please specify). Construction Material:
Pump body: Cast iron G20 with anti-corrosive coating.
Motor bracket: In die casting aluminium UNI 5076 and stainless steel Aisi 304 (cast iron for Jap 150-200).
Ejector: Cast iron G20 with anti-corrosive coating.
Diffuser, Nozzle & Venturi tube: GE Noryl® GFN2.
Impellers, GE Noryl GFNZ (stamped brass UNI-EN 12165 available on demand).
Pump shaft: Stainless steel Aisi 420A. Technical Features:
Closed auto-ventilated motor with protection IPX4, two poles, class F insulation.
Single-phase with incorporated motor protector and capacitor permanently connected.
Three-phase with compulsory protection to be provided by the user.
Continuous duty. Installation
A foot valve must be installed at the foot of the ejector.
After the pump is installed, fill pipes with clean water.
To preserve an efficient priming a specific pressure in the circuit is necessary – a gate valve on the discharge can achieve this
Note: Minimum pump operating heads, must be observed
2 Year Warranty
Please regarding product as we don't always carry this item in stock
