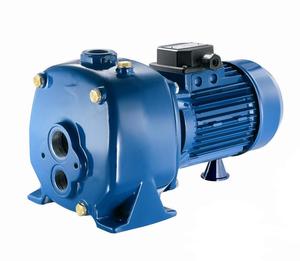

Pentax AP Series - Cast Iron Deep Well Bore Pumps
Inlet 32mm
Outlet 25mm
Single phase voltage range: 220-240V PSC
Insulation: Class F
Protection: IP44
Rating: Continuous Features:
Suction Lift - up to 50 Metres
2" & 4" External Ejectors
Heavy Duty Build
Cast Iron Body & Motor Bracket
Ceramic Mechanical Seal
Stainless Steel Shaft
Built in thermal overload protection Operation limitations:
Liquid temperature range: 0ºc to 50ºc
Maximum operating pressure: 8bar/116PSI Applications:
Suitable for wells, and bores with 2' and 4' options
Long distance pumping
Irrigation
Gardening
Water transfer
Household water supply
Installation:
Before operation, a foot valve has to be installed at the foot of the ejector.
Fill the pump with water once it has been installed and connected up.
A gate valve must be installed to keep pump primed.
Minimum pump operating heads must be maintained to ensure correct pump operation.
2 Year Warranty
