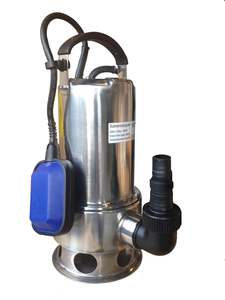

Calf Milk - Stainless Steel Submersible Vortex Pump - 550 Watt
Q550B
Designed for use as a Calf Milk Pump. Pumps solids up to 35mm - great for pumping out footings! Specifications:
Power: 550 Watt
Max Flow rate: 166 Litres per minute or 10,000 Litres per hour
Max delivery height: 7 metres
Max immersion depth: 7 metres
Foreign body size: Up to 35mm
Max pressure:.7 bar
Weight: 5.6 kg
Dimensions:
345mm high
240mm wide (including outlet elbow adaptor)
Features:
Light Weight
Easy to use
Float switch for run-dry protection
10 Metre electrical cord
1 inch, 1.25 inches, stepped outlet hose fitting for 25mm & 32mm Hose
Corrosion resistant stainless steel construction - including stainless steel shaft
The external float lead is adjustable
Cut in can be approx. 350-450 mm and cut off approx. 100mm
500 mm max is needed for float clearance.
The float switch automatically switches on the pump at a water height of approx. 53cm and off at approx. 15cm. By fixing the float switch cable to the float switch lock, the cut in/out height can be adjusted. Applications:
Drainage
Dirty water
Calf Milk
Not suitable for ponds, fountains, sewage/effluent or biotreatment systems.
Please Note:
Pump is suitable for intermittent use only.
Pump is not suitable for permanent installation
12 months warranty
Q Series Brochure
