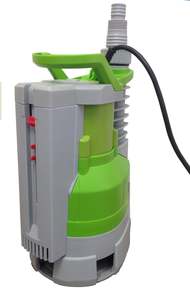

Hi-Flo JH550B Submersible Pump with Adjustable Internal Float Switch - 550 Watt
The Hi-Flo JH550B is suited to all de-watering tasks including pumping out sumps, swimming pools, flooded areas and drawing water from wells.
This pump has an internal float switch which will not foul and allows for installation in small sumps (min size 240mm x 165mm x 330mm deep). It has switch which allows you to select "Automatic" or "Manual" mode. When switched to Automatic mode the pump will start when water level reaches 150mm and turn off when water level drops to 110mm, the water level at which the pump stars is adjustable (150mm to 220mm) When switched to manual mode, the pump will run continuously until power power to the pump is turned off. In this mode the scavenger type base allows pumping down to 40mm. Specifications:
Power: 550 Watt
230v. Single Phase
Max Flow rate: 190 Litres per minute
Max delivery height: 7 metres
Max immersion depth: 7 metres
Flow at 2 metres 190 lpm
Foreign body size up to 35mm
Comes with non return flap valve
Fits into a 240mm x 165mm area
Liquid temperature: 0-40 Degrees Features:
Light Weight
Easy to use
Can pump solids up to 35mm in diameter
Internal Float switch for run-dry protection
10 Metre electrical cord with std 3 pin Plug
1" & 1ΒΌ stepped outlet hose fitting - 25mm & 32mm Hose Applications:
Drainage pump
Dirty water applications
Emptying Pools & Spas
Water Transfer
(Not suitable for ponds, fountains, sewage/effluent or biotreatment systems)
(Suitable for intermittent use only. Not recommended for permanent installation)
12 MONTH WARRANTY
JH550B Brochure
