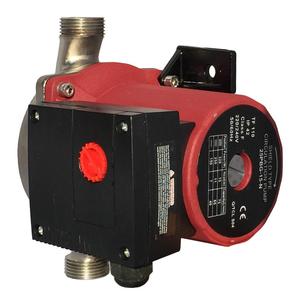

TREVOLI UPS 25-150 Circulation Pump **Second Hand**

Trevoli – UPS 25-150 Circulation Pump Second Hand This is a second hand product that still works as described below. :

UPS pumps constitute a range of 3-speed circulator pumps.
The pumps can be used in both open and closed systems. UPS pumps are of the canned-rotor type, i.e. pump and motor form an integral unit without a shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. Specifications:

Mains voltage: 240v 50Hz
Enclosure class: IP42
Insulation class: F
Duty rating: Continuous
Liquid temperature range: 0-110° C
Maximum ambient temperature: 40° C
Maximum operating pressure: 10 bar
Port to port dimensions: 185mm
Port size: 25mm BSP thread
Unions: Brass 20mm ELECTRICAL DATA:

Mains voltage: Single phase 240v 50Hz
Input Power Speed 1: 150 W
Input Power Speed 2: 250 W
Input Power Speed 3: 320 W PERFORMANCE DATA:

Speed 1: MAX - 40 L/m, 7m Head
Speed 2: MAX – 65 L/m, 11m Head
Speed 3: MAX – 75 L/m, 15m Head FEATURES:

Maintenance-free
Low noise
Low energy consumption
Corrosion-resistant stainless steel pump housing
Wide range of accessories.
PUMPED LIQUID:

UPS circulator pumps are suitable for the following liquids:
Clean, thin, non-aggressive and non-explosive
liquids without solid particles or fibers
Cooling liquids, not containing mineral oil
Domestic hot water, max. 14 °dH, max. 65 °C, peak max. 70 °C
Softened water Applications:

The UPS 25-150 is designed for circulation of liquids in heating and air-conditioning systems. This pump has a stainless steel housing, suitable for use in hot-water service systems. Examples of typical applications are:

One- and two-pipe heating systems
Main pumps
Zone pumps
Boiler shunt pumps
Pumps for heating surfaces
Calorifiers
Underfloor heating systems
Solar heating systems
Heat pump systems
Geothermal heating systems
Heat recovery systems
Two-pipe air-conditioning systems
Pumps for refrigeration units.

UPS25-150 - ONE YEAR WARRANTY
