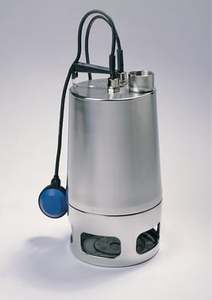

GRUNDFOS UNILIFT AP 35 & 50
( A1 with Float Switch)
Max particle size: AP35.40.06.A1V, AP35.40.08.A1V - 35 mm
Max particle size: AP50.50.08.A1V, AP50.50.11.A1- 50mm
Outlet Size: AP35- 40mm
Outlet Size: AP50-50mm
230v
Single Phase
50Hz
Cable- 10m
Liquid temperature 0 °C to 55 °C Max
pH concentration: 4 to 10
Max. installation depth: 10 m Features:
Robust design: The materials of the pump ensure excellent corrosion resistance.
Pump housing and impeller are made of high quality stainless stee
Mechanical shaft seal offers high-wear resistance and a long operating life.
Thermal overload protection
The single-phase version is effectively protected against any accidental overload by built-in thermal protection. This means that no additional motor protection is required.
Handy and easily transportable
The carry handle mounted on the pump housing makes it handy and easily transportable.
Option for automatic operation- The pumps are available with float switches for automatic on/off operation.
Enclosure class: IP68
Insulation class: F
Cable type H07RN-F
Suitable for permanant installation Application:
Sewage
Effluent
Drainage
Dirty Water
Waste Water
Clean Water
Grey Water
2 Year Back to Base Warranty
