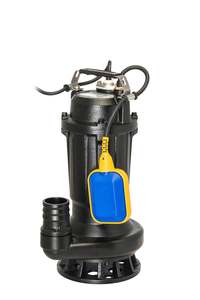

TREVOLI K75 - Cast Iron Submersible Dirty water / Drainage Pump - 1 HP
Suitable for use as an Effluent Pump, Dirty Water Pump, Drainage Pump, Septic and Aerated sewage treatment Pump, Grey Water Pump and Irrigation Pump Specifications:
Power: 750 Watt (1 HP)
Max Amperage: 5A Max
Flow rate: 270 L/min
Max delivery height: 13.5 meters
Max immersion depth: 5 meters
Weight: 16.2 kg
Outlet size: takes 50mm hose (actual thread size 40mm) Features:
Easy to use
Rated for continuous use
Can process long fibers and solids up to 10mm
Has a float switch for run-dry protection
Motor has built in auto-reset thermal overload protection
Double mechanical seals with oil chamber and lip seal for added protection
10 Metre R05RNF neoprene chemical and oil resistant electrical cable with 3 pin plug
Comes with cast iron 50mm outlet hose fitting (removable) (40mm thread)
Solid Cast Iron pump body and impeller for durability
Limitations
The maximum depth it is allowed in water is 5m from its centre of impeller
The temperature of the liquid to be pumped shouldn't be higher than 40C
Liquid to be pumped should have a PH: 4-10
Density of the Liquid to be pumped limit: 1.2 x 103 kg/m3
Common Applications: Effluent pump, Drainage pump, Dirty water pump.
2 Year Warranty
K75 Brochure
