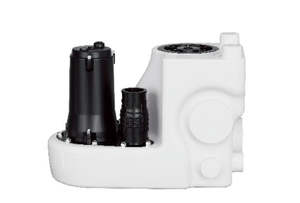

CLPS750-A1 Sewage Lifting System

CLPS750-A1 is a mini lifting station. Mainly used in basement below municipal sewage pipelines or on the same floor without sewage pipelines. Suitable for discharging domestic sewage generated by toilets, shower rooms, washbasins, bar sinks,.

The CLPS750 box is made of corrosion-resistant and environmentally friendly PE material, which has good sealing, durability, and is compact, lightweight, and good looking. The box has a capacity of approximately 23L and is equipped with multiple horizontal and vertical water inlets for easy installation. Features:

Compact design, preassembled system for easy installation.
Pump 100% factory tested after assembly.
Non-clogging vortex impeller.
Built-in check valve.
Easy accessibility for maintenance.
Control box comes as standard. Specifications:

Max Head: 13m
Max Flow Rate: 460 Litres per minute
1 Horsepower
0.75 kW
230v
Outlet: 40mm
Particle Size: 40mm Technical Features:

Cable Length: 5m
3 Side Inlet: DN40 (50)
3 Side Inlet: DN100 (110)
1 Top Inlet: DN40 (50)
External Discharge diameter: DN40 (50)
External Vent Diameter: DN40 (50)
Min. Shower Tray Height: 25cm
Max incoming temperature: 60 degrees (10minutes)
IP68 (Excluding Control Box)
2850 RPM
Start-Up Height: 150mm
Shut-Off Height: 90mm
Duel level control with air pressure/float switch
Max start up: 60 times per hour
Material: Tank (PE), Pump housing (HT250, SUS304)

One Year Back to Base Warranty

-
