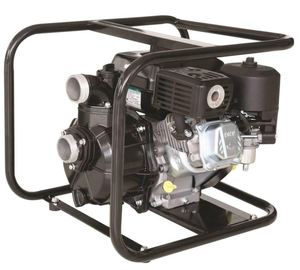

BIANCO Vulcan 5.0 HP Petrol Pump - Briggs & Stratton
The pump is a compact self priming engine driven pump supplied ready to operate with hose fittings and suction strainer.
Please enquire about availability Specifications:
Head/ Pumping height-30 metres Max
Flowrate to 500 LPM Max
Suction to 6 metres
2" BSP Male Discharge Port/ 2" BSP Male Suction Port
Single Cylinder, 4 Stroke
Forced Air Cooled Briggs & Stratton OHV Engine
Rubber Mounting Feet
Low Oil Level Engine Protection Features:
Next generation engine and pump design
800 hour high performance engine
Dura-bore™ cast iron cylinder liners for longer life
Lo-Tone™ muffler for reduced noise
Low emissions to recognised global standards
Full national engine support across 400 Briggs & Stratton service centres
Spark arrester with deflecter
Low oil sensor
Full serviceability without removing pump from frame
Heavy duty fuel cap
Multi-Point discharge port
Custom built frame Applications:
Dust Suppression
Water Transfer
Tank Filling
Water Cartage Engine Data:
Type: Single Cylinder, Aircooled, 4 Stroke OHV, Briggs & Stratton I/C Series
Model: 1062320070H1
HP gross: 5.0
Displacement: 163 cc
Air Cleaner: Dual Element, Paper and Foam
Ignition: CDI
Starting: Recoil Fuel
Capacity: 3.1 Litre
Oil Capacity: 0.6 Litre
Liquid:Liquid Type: Clean Water
Clean water temperature range: 2 - 35o C
Materials: Pump Body: Aluminium Impeller: Aluminium Mechanical Seal: Carbon/Ceramic/Nitrile O rings:Nitrile
Installation: Maximum ambient temperature: 400 C Self Priming Time at 5m: 120 seconds
Weight:-24 KG
Brochure
3 Year Back to Base Warranty
