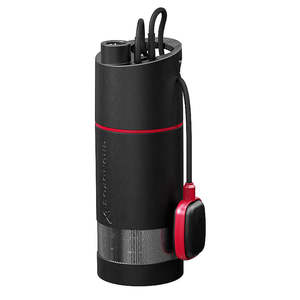

Grundfos SB Submersible Booster Pump Series
Please regarding product as we don't always carry this item in stock
The Grundfos SB pump is a submersible booster pump designed for the pumping of clean water for domestic and rainwater applications. The SB submersible pump is silent when submerged and therefore a noiseless alternative to surface mounted pumps. The SB pump is constructed from high quality composite and stainless steel materials that are resistant to corrosion. Specifications: Model kW Amps Max Head Max Flow Inlet/Outlet SB 3-35 A 0.47 3.5 38m 100 LPM 25mm/1" SB 3-45 A 0.55 4.0 46m 100 LPM 25mm/1" SB 3-45AW 0.62 4.8 43m 105 LPM 25mm/1"
Note:
Models:
A: with float switch for automatic operation and dry running protection
AW: with float switch and floating suction strainer
240 V
Single Phase
50 Hz
Insulation class: B
Enclosure class: IP68 Max
Maximum particle size: 1 mm
Ambient temperature: Max 50 °C
Liquid temperature: 0 to 40 °C
pH-value range: 4-9
Cable: 15m with plug
Maximum Installation Depth: 10m Applications
Above or below ground water tanks
Small homes
Water transfer
2 Year Back to Base Warranty
