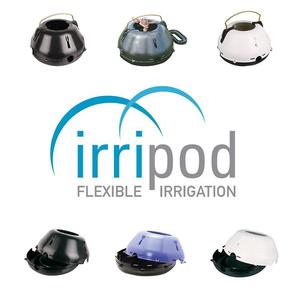

Hansen Irripod Effluent System & Kits
System
Code & EFFLUENTSYS Effluent System Part A,B,C,D Effluent System Set contains: 1 x Part A - 90mm Adaptor Set 1 x Part B - Sub Main Set 1 x Part C - Pod Hydrants 3 x Part D - Pod Sprinkler Lines Kits Code & EFFLUENT-A Effluent 90mm Adaptor Irripod Effluent 90mm Adaptor Set is used to attach a 90mm Effluent Pipeline to the 45mm Sub Main Set (Part B) Contains: 1 x Hansen 80mm Male Camlock Threaded Adaptor 1 x Hansen 100mm Female Elbow 1 x Hansen 100 x 50mm Reducing Bush 1 x Hansen 100 x 80mm Reducing Bush 2 x Hansen 50mm Hex Nipples 1 x Hansen 50mm Lilac Ball Valve 1 x 50mm Female Camlock PP 2 x 1/2" Thread Tape Packaging 1 x Box Code & EFFLUENT-B Effluent Sub Main Set Irripod Effluent Sub Main Set is used to attach to the Adaptor Set (Part A) Contains: 2 x Hansen 45mm Camlock with Lilac Nut 1 x 50mm Female Camlock PP 1 x Hansen 50mm Tow Eye BSPT 1 x Effluent Pipe 45mm x 50m Lilac coded 1 x Yellow Tow Ball 1 x Tow Rope 2 metre spliced ends 2 x 1/2" Thread Tape Packaging 1 x Box & 1 x Coil of Pipe Code & EFFLUENT-C Effluent Pod Hydrants Irripod Effluent Pod Hydrants are attached to the Effluent Pipe at 20m intervals to distribute the Effluent to the Pod Sprinkler Lines. Contains: 3 x Irripod Low Bases 12 x M8 x 25 Stainless Steel Cap Screws 3 x Hansen Manifold Block 50mm 4 Way BSP 6 x Hansen 50mm Hex Nipples 6 x Hansen 45mm Male Straight Coupling with Lilac Nut 6 x Hansen 50mm Lilac Ball Valves BSP 6 x 50mm Male Camlock PP 3 x 1/2" Thread Tape Packaging 1 x Box Code & EFFLUENT-D Effluent Pod Lines Part D - Pod Sprinkler Lines Irripod Effluent Pod Sprinkler Lines are attached to the Effluent Pipe at 20m intervals to distribute the Effluent. Contains: 6 x Lilac Pods with Black Bases 6 x 20mm Senninger 4023 Sprinkler 6 x Irripod 45mm LDPE Low Riser 20mm Male BSP Tapping Saddle Tops 6 x Hansen 20mm Sockets 2 x Hansen 45mm Camlock with Lilac Nut 1 x 50mm Female Camlock PP 1 x Hansen 50mm Tow Eye BSPT 1 x Irripod Effluent Pipe 45mm x 120m Lilac coded 1 x Yellow Tow Ball 1 x Tow Rope 2 Metre Spliced Ends 6 x Cross Tee Anchor 40-45mm LDPE 6 x Wire Protectors 12 x Wire Retainer Clips 6 x Tapping Saddle Seals 6 x Irripod Screw Bags (6 x 10g Pozi Pan Head Self Tapping Stainless Steel Screws) 6 x Irripod U-Bolt Bags (2 x M8 x 65mm Stainless Steel U Bolts, 4 x M8 Stainless Steel Flanged Nuts)
