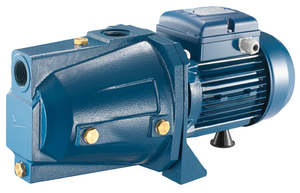

Pentax CAM 100N/61 Series - Cast Iron Jet Pump

CAM 100N/61

The Pentax CAM 100N/61 is self-priming centrifugal jet pump, ideal for house or farm water supply and transfer. The Jet/Venturi design provides the pump with the ability to lift water 8 meters below from the water source. Other applications include drawing water from rivers, ponds, wells, bores and underground tanks. The Cam series are a heavy duty and robust pump.
Explanation of Controller Options Specifications:

Power: 0.75kW/1.0 HP
Head Height: 52m
Flow Rate: 70LM
Amps: 4.7
Voltage: 230v/Single Phase
Inlet/Outlet: 25mm
Suction Lift: 8m Features:

Suction Lift - 8 Metres
Heavy Duty Build
Cast Iron Body & Motor Bracket
Ceramic Mechanical Seal
Stainless Steel Shaft
Built in thermal overload protection Operation limitations:

Liquid temperature range: 0ºc to 50ºc
Maximum operating pressure: 8bar/116PSI
Insulation: Class F
Protection: IP44
Rating: Continuous Applications:

Suitable for Large Homes
Farm supply
Water transfer
Drawing water from rivers, ponds, wells, bores and underground tanks

2 Year Warranty
