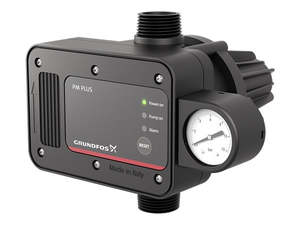

Grundfos PM Plus Electronic Pump Controller

Please regarding product as we don't always carry this item in stock

The Grundfos all-in-one PM PLUS pressure manager works with domestic water supply pumps from Grundfos or any brand automatically starting the system pump at a preset pressure point and continuing for as long as the water flows.

It ensures optimal water pressure wherever and whenever it’s needed around the home, solving issues such as fluctuating or insufficient water pressure. Easy to install and safe to run, the PM PLUS includes such features as dry-running protection. Specifications:

- Rated Voltage:115V-230V
- Max Current: 10A
- Frequency: 50/60 Hz
- Max Power: 1.5kW
- Joint Screw: 1inch (25mm)
- Protection Grade: IP65 Features:

- Alarm Indication
- Adjustable Start Pressure
- Dry-Run Protection
- Integrated non-return valve
- Internal pressure membrane
- Compatible with generator supply
- Pressure gauge
- Dual voltage
- Ani-jam function
- Automatic restart
- Self-priming function Applications:

Typical applications are water supply systems and rainwater systems in :

- Single-family houses
- Blocks of flats
- Baches
- Horticulture and gardening
- Agriculture

Brochure

Instructions

2 Year Back to Base Warranty
