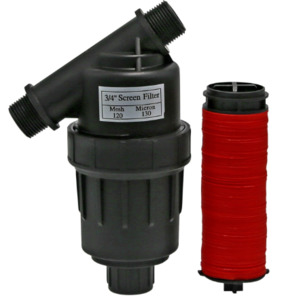

Inline Filter Disc

FDT

In-line filters with a disc strainer are designed to reduce containments in water. Housings are made from robust plastic with heavy duty lock ring for simple cartridge release and servicing without requiring tools. The 1 1/2" and 2" housings have two 1/4" male ports and all models have 3/4" male bottom port. The Disc filter uses plastic discs with fine groves, when the cartridge is removed, the discs come apart to dislodge sediment and be cleaned. Specifications:

130 Micron
Filter Element: Disc Type
Model Ports Pressure Max Flow Filter Area Design 20mm (3/4 inch) Inlet/Outlet-Angled FDT120‑034 3/4" 10 Bar 100 LPM 90cm2 Angled 25mm (1 inch) Inlet/Outlet-Angled FDT120‑100 1" 10 Bar 115 LPM 90cm2 Angled 40mm (1 1/2 inch) Inlet/Outlet-Straight FDT120‑100 1 1/2" 8 Bar 250 LPM 246cm2 Straight 50mm (2 inch) Inlet/Outlet - Straight FDT120‑200 2" 8 Bar 366 LPM 246cm2 Straight 50mm (2 inch) Inlet/Outlet - Angled FDY120‑200 2" 6 Bar 583 LPM 763cm2 Angled

Also known as part numbers:

715-FDT120-034
715-FDT120-100
715-FDT120-112
715-FDT120-200
715-FDYB120-200
