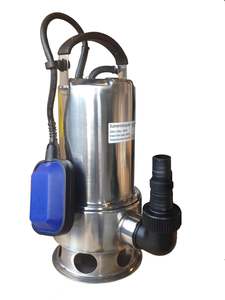

Q1100B - HiFlo Stainless Steel Submersible Vortex Pump - 1100 Watt
Suited to all de-watering tasks including pumping out sumps, swimming pools, calf milk, flooded areas and drawing water from wells. Specifications:
Power: 1100 Watt
Max Flow rate: 275 Litres per minute
16500 Litres per hour
Max delivery height: 10.5 metres
Max immersion depth: 7 metres
Foreign body size: Up to 35mm
Max pressure:.75 bar
Weight: 7.4 kg
Dimensions:
345mm high
240mm wide (including outlet elbow adaptor)
Temperature Range: 0-35 degrees
Features:
Light Weight
Easy to use
Float switch for run-dry protection
10 Metre electrical cord
1 inch, 1.25 inches, stepped outlet hose fitting for 25mm & 32mm Hose
Corrosion resistant stainless steel construction - including stainless steel shaft
The external float lead is adjustable
Cut in can be approx 350-450 mm and cut off approx 100mm
500 mm max is needed for float clearance.
The float switch automatically switches on the pump at a water height of approx 53cm and off at approx 15cm. By fixing the float switch cable to the float switch lock, the cut in/out height can be adjusted. Applications:
Drainage
Dirty water
Calf Milk
Not suitable for ponds, fountains, sewage/effluent or biotreatment systems.
Please Note:
Pump is suitable for intermittent use only.
Pump is not suitable for permanent installation
12 months warranty
Q Series Brochure
