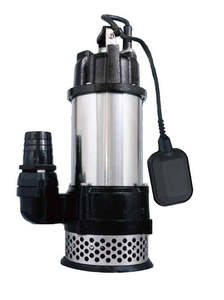

TREVOLI BAH-750A Submersible Pump

The Trevoli BAH is a heavy duty, cast iron/stainless steel submersible pump ideal for high head water transfer, pumping clean and dirty water. Robust, reliable and high quality. Specifications:

230 Volts
Single Phase
0.75kW/1.0HP
Max Flow Rate: 220LPM
Max Head: 25m
Comes with Float Switch
Outlet Size: 50mm
Particle Size: 8mm
Features: Double Open Impellers
Lip Seal and double mechanical seal in oil bath
Inlet strainer
Float switch for automatic level control depending on model
In-winding thermal auto reset overload protector Cable Length: 10 meters
Technical Features: Maximum Immersion Depth: 6 meters
Protection Class: IP68
pH: 6 to 8
Liquid Temperature: 0-40 degrees Weight: 17kg
Applications:

Pumping clean and dirty water
Water transfer (high head applications)
Driplines

Dimensions:

BAH Series brochure

2 Year Warranty
