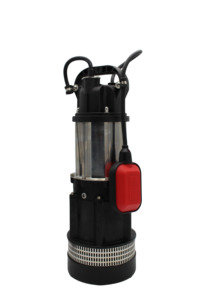

Trevoli MVH-10A High Pressure Submersible Pump

The Trevoli MVH-10A is a submersible high head pump designed for drip line applications, water transfer or domestic household use with an automatic controller. Fitted with PPO impellers & diffusers with a stainless steel strainer. Specifications:

Voltage: 220-240v
Wattage: 600 watts
HP: 0.75
Max Flow Rate: 105 Litres per minute
Max Head Height: 32 metres
Single Phase
Amps: 3.7
Outlet: 1"/25mm
Max solid: 3mm Technical Features:

IP68
50 Hz
Capactior: 18uF
Insulation Class: B
Liquid Temperature: 0-35 degrees
Maximum Temperature: 40 degrees
Weight: 12kg
Physical Dimensions: 460(H) 171(L) 163(W)- Not including Float

Immersion Depth: 7m Features:

10 metre Cable
Includes Float Switch
Stainless Steel upper body
Heavy Duty plastic bottom body and handle
Double mechanical seal (Carbon ceramic) in oil bath
In built s/steel Strainer
High Quality PPO stages and impellers
S/steel Shaft
Built in thermal overload protection Applications:

Household pressure systems & domestic applications (with optional automatic press control)
Transferring rain water/clean water
Drip line systems
Drainage and sump dispersal

2 Year Warranty
