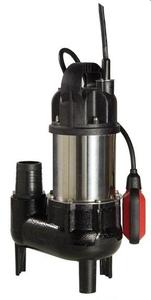

TREVOLI - BCV-400A Cast Iron Vortex Submersible Dirty water / Sewage Pump 400w
BCV-400A
Suitable for use as an Effluent Pump, Dirty Water Pump, Drainage Pump, Septic and Aerated sewage treatment Pump, Grey Water Pump and Irrigation Pump Specifications:
Power: 400 Watt (½ HP)
Max Amperage: 4.0A Max
Flow rate: 300 L/min
Max delivery height: 8 metres
Max immersion depth: 8 metres
Weight: 11 kg
Outlet size: 50mm (2 inch BSP) Head (metres) / Flow (LPM)
3m Head- 295 LPM
4.5m Head-210 LPM
6m Head- 120LPM
7.5m Head-25 LPM Features:
Easy to use
Non clogging Vortex impellor design
Rated for continuous use
Can process long fibres and solids up to 30mm
Has a float switch for run-dry protection
Motor has built in auto-reset thermal overload protection
Double mechanical seals with oil chamber and lip seal for added protection
10 Metre R05RNF neoprene chemical and oil resistant electrical cable with 3 pin plug
Comes with cast iron 50mm outlet hose fitting (removable)
Solid Cast Iron pump body and impeller for durability Limitations:
1. The maximum depth it is allowed in water is 8m from its centre of impeller
2. Liquid to be pumped should have a PH: 6-8
Common Applications: Effluent pump, Drainage pump, Dirty water pump.
BCV Series Brochure
24 Month (2 Year) Warranty
