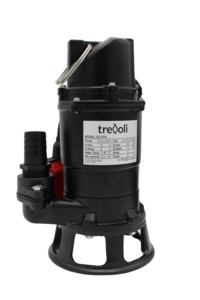

TREVOLI - GC-07A Grinder Submersible Sewage Pump
The Trevoli GC Series are heavy duty but compact grinder/cutter/macerator pump. Suitable for use as an Effluent Pump, Drainage Pump, Septic and Aerated sewage treatment Pump. Specifications:
220-240v
Single Phase
0.55kW/0.7HP
Max Flow Rat: 140LPM
Max Head: 10m
Outlet: 32mm
50 Hz
Solids: N/A Features:
Comes with Float Switch
10m Cable
Cutter material: SUS440C
Double mechanical seal
Heavy duty design
Cast iron body
Cast iron seal plate
Efficient vortex flow channel design
Technical features:
Temperature Range: 0-40 degrees
Motor Insulation: B Class
IP68
Dimensions: L: 213mm, W: 170mm, H: 351mm
Weight: 10kg
Maximum Immersion Depth: 7M Applications:
Effluent Pump
Septic and Aerated sewage treatment Pump. Pump Recommendations:
Please see dropdown menu for option and more information below:
Cast Iron Threaded Ball Check Valve
Tank Level Alert Alarm
MP-S1 Plus Controller
2 Year Back to Base Warranty
