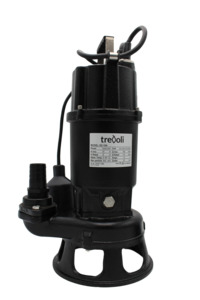

TREVOLI GC-10A Grinder Submersible Sewage Pump

The Trevoli GC-10A is heavy duty but compact grinder/cutter/macerator pump. Suitable for use as an Effluent Pump, Drainage Pump, Septic and Aerated sewage treatment Pump. Specifications:

220-240v
Single Phase
0.75kW/1.0HP
Max Flow Rate: 160LPM
Max Head: 15m
Outlet: 32mm
50 Hz
Solids: N/A Features:

Comes with Float Switch
10m Cable
Cutter material: SUS440C
Double mechanical seal
Heavy duty design
Cast iron body
Cast iron seal plate
Efficient vortex flow channel design
Technical features:

IP68
Temperature Range: 0-40 degrees
Motor Insulation: B Class
Weight: 15kg
Maximum Immersion Depth: 7M
Dimensions: L-270mm, W-205mm, H-410mm
Applications:

Effluent Pump
Septic and Aerated sewage treatment Pump Pump Recommendations:

Please see dropdown menu for option and more information below:

Cast Iron Threaded Ball Check Valve
Tank Level Alert Alarm
MP-S1 Plus Controller

2 Year Back to Base Warranty
