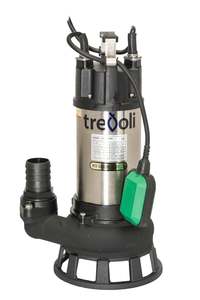

TREVOLI - MG1100A Cast Iron Submersible Cutter/Macerator Sewage Pump 1100w

MG1100A GRINDER

The MG1100 (CS) range of submersible cutter pumps are designed for pumping sewage and soiled waste waters. Fitted with a double edge tungsten cutter and high abrasive-resistance impeller they are ideal for pumping waste water with stringy or long soft solids in suspension. Other Applications include De-watering, Effluent, Septic disposal & domestic sewage treatment. Specifications:

Max Head: 15m
Max Flow: 620 lpm
Power: 1.1kW
Outlet: 50mm Features:

Max Immersion Depth- 8m
Double edge Tungsten cutter
High abrasive-resistance impeller
Heat treated bottom grind plate for cutting sewage
Double mechanical seals with oil chamber and lip seal for added protection.
Non clogging Cutter/Macerator impeller design
Solid Cast Iron pump body and impeller for durability
Can process long fibers and solids up to 15mm
Technical Features:

Special high flow design can achieve the maximum efficiency in sewage and mud
Cast iron vane wheel with with tungsten alloy cutting knife
A type wheel is easy to cut up the impurity like branches, paper,. and outflow it with sewage
Italian manufactured double-faced mechanical seal and oil seal to make waterproof protection
SUS-304 stainless steel for motor housing, motor shaft and screws
Dimensions: Height 47cm Length 28cm width 22cm
10m Cable with 3 Pin plug. Motor Features:

Single phase
Closed externally ventilated
Insulation class: B
Protection class: IP68
Duty: continuously rated
Motor Thermally Protected
Liquid temperature: 0-60°C
Pump Recommendations:

Please see dropdown menu for option and more information below:

Cast Iron Threaded Ball Check Valve
Tank Level Alert Alarm
MP-S1 Plus Controller

CS Cutter Brochure

Two Year Back to Base Warranty
