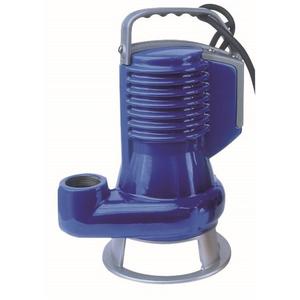

ZEN-DRBLUEP SERIES - Submersible Water Pump
Foreign body size: 5mm to 30mm
1 ¼" to 2"outlet
Also available in 3 phase, Please enquire about no float switch options Features:
New series of submersible drainage pumps for domestic and professional use.
DR (DRENO) version with multi-vane fully submerged impeller for efficient operation.
Float switch standard on single-phase versions.
10 m power lead (with 3 pin plug on single-phase pumps). Suits outdoor installations.
Patented sealing system incorporating dual silicon carbide / graphite alumina mechanical seals in oil bath. Longer seal life.
Anti-stressing system for power cable. Reduces cable damage and water entry.
Cable holder grommet built into handle. Allows adjustment of float switch cable length.
Cast iron pump body. For durability.
Suction screen. To keep out hard solids.
Ergonomic plastic carry handle. For safety and comfort.
Supplied with standard power cables
10 Metre electrical cord Technical Features:
Maximum operating temperature 40 °C
Maximum immersion depth 20 m
PH of treated fluid 6 to 14 pH
Max starts per hour 30
Nominal absorbed current (In) 4.1 A
rated power factor (cos phi) 0.94
Nominal power frequency (f) 50 Hz
N° phases 1
IPMotor 68
Materials:
Case Grey Cast Iron - EN-GJL 250 (02)
Shaft Stainless Steel - AISI 420 (23)
Cooling jacket Not applicable (00)
Standard gasket Rubber - NBR (77)
EX gasket Not applicable (00)
Nuts and bolts Stainless Steel - Class A2-70 (42)
Hydraulic Grey Cast Iron - EN-GJL 250 (02)
Impeller Plastic (73) Cutting disk Not applicable (00)
Cutter Not applicable (00)
Grid Plastic (73) Applications:
Effluent pump
Drainage pump
General water pump
Sumps
Swimming pools
Sewage
for brochure
Made in Italy and comes with a 2 Year Warranty
