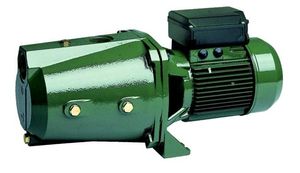

DAB JET 200 M - Domestic Pressure Pump System

Please regarding product as we don't always carry this item in stock

Self Priming Single Stage Jet Assisted Cast Iron Jet Pump
The JET 200 from DAB is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, small scale agriculture, gardening and wherever self- priming operation is necessary. Specifications:

Max Flow 200 Litres/Min
Max PSI 59 psi, (407 kpa)
Horsepower 2hp (1.5kw)
Taps 18
Suction lift 9 metres
Hose Connection size 1.25" Applications:

Pressure boosting
Irrigation
Wash down applications
Designed for pumping from tanks, rivers and dams. These pumps are very reliable in the toughest of environments. Features:

Liquid temperature range:
-from 0°c to 35°C for domestic use
-from 0°C to 40°C for other use
Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
Maximum ambient temperature: 40°C
Maximum working pressure:
-6 bar (600 kPa) for Jet and Jetcom
-8 bar (800 kPa) for Jetinox
Protection level: IP 44 (IP 55 terminal board protection
Insulation class: F. Materials:

Cast iron pump body.
Motor support in cast iron
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel adjustment rings.
Carbon/ceramic mechanical seal.
Asynchronous motor closed and cooled by external ventilation.
Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.

2 Year Warranty
