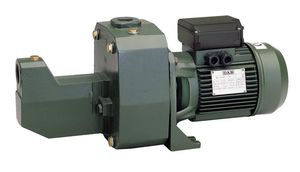

DAB JET 251 - Shallow Well / Deep Well Pump
The JET 251 M from DAB is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations, small scale agriculture, gardening and wherever self- priming operation is necessary. Specifications:
Max Flow 135 Litres/Min
Max PSI 91 psi, (627 kpa)
1.85kW
Horsepower 2.5hp
Taps:12
Suction lift 9 metres
Hose Connection size 1" Applications:
Pressure boosting
Irrigation
Wash down applications
Designed for pumping from tanks, rivers and dams. These pumps are very reliable in the toughest of environments. Features:
Liquid temperature range:
-from 0°c to 35°C for domestic use
-from 0°C to 40°C for other use
Pumped liquid characteristics: clean , free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
Maximum ambient temperature: 40°C
Maximum working pressure:
-6 bar (600 kPa) for Jet and Jetcom
-8 bar (800 kPa) for Jetinox
Protection level: IP 44 (IP 55 terminal board protection
Insulation class: F. Materials:
Cast iron pump body.
Motor support in cast iron
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel adjustment rings.
Carbon/ceramic mechanical seal.
Asynchronous motor closed and cooled by external ventilation.
Built-in thermal and current overload protection and a capacitor permanently on in the single-phase version.
2 Year Warranty
