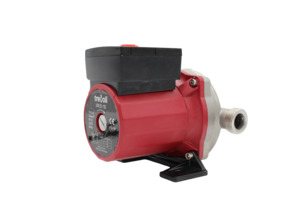

TREVOLI UPA 25-150 Booster/Circulation Pump
The Trevoli UPA 25-150 Booster/Circulation Pump is a large stainless steel circulator pump, designed for water pressure boosting in domestic properties to provide additional pressure to hot and cold water taps and similar outlet points. Applications:
Suitable for liquid transfer in pressure boosting systems, such as Domestic water supply systems and solar.
Developed for domestic use in homes where inconsistent or low hot water pressures cause problems, especially in bathrooms and laundries. These extremely quiet pumps have particular application in homes equipped with gravity fed hot water system, or simply in situations where low water pressure is experienced.
The Trevoli UPA 25-150 hot water booster pump can be easily installed to new pipework or existing pipework. The pump increases the water pressure so that the flow rate is comfortably high in showers, taps and any other domestic water outlets. A built-in flow switch starts and stops the pump when the tap is turned on and off- (low flow actuated 2.5-3.0 lpm at 2M Head, this is variable)
When used to boost hot water, the pump will assist in minimising the often annoying change of shower water temperature when someone else at home uses another hot water outlet. Furthermore, there is much less waiting time for hot water to appear in the shower or other water outlet when the hot tap is turned on. Specifications:
Power -320W
220 - 240V with standard 3 pin plug
Max Flow rate: 75 L/m
Max discharge head: 15 metres
Max Pressure: 21 PSI
Inlet/Outlet sizes: 25mm / 1" with 20mm/¾" couplings
3 Speed Technical Specifications:
Max Fluid temperature range 0 - 70 Deg C
Max casing pressure: 6 bar
Enclosure class: IP42
Winding insulation: Class B
Distance between inlet and outlet 200mm, 260 with flow sensor
Typically adds between 97 kpa and 135 kpa to the existing inlet pressure. The exact amount of pressure added is dependent on the plumbing system, pipe sizes, pipe length. Features:
Very quiet operation
Low power consumption
Pump Body- Stainless Steel
Stainless steel rotor can with ceramic shaft & Seal
Comes with two Brass Unions (25mm/20mm)
ONE YEAR BACK TO BASE WARRANTY
