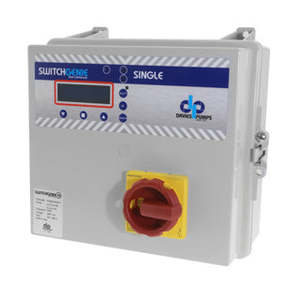

DAVIES Switchgenie Single Pump Controller
The Davies Switchgenie SG20 SG25 SG26 SINGLE control panels are designed to control one pump DOL either tank filling or emptying in clean or waste water applications. They provide pump protection with self learning of pump operating data during initial setup, including run dry failure and monitoring of power supply and motor limits, rapid cycle protection. Simple and fast to install with electrical main lock out switch and easy to use operating menu with LCD screen and status indicator lights. Three standard models with single or three phase power supply to operate motors from 0.37Kw to 11Kw and cover a wide range of applications with float switches, probes, pressure switch or pressure transducer inputs. Specifications: Model Motor Size Phase Voltage 228-SG-20 0.37-2.2 kW 1/3 230 228-SG-25 0.55-7.5 kW 1/3 400 228-SG-26 7.5-11.0 kW 1/3 400 Features:
Single Panel for potable or waste water applications
Self Learning of Pump motor Data
Works with floats, pressure switches or probes
4-20mA input for pressure transducer
Dry Run Protection by minimum Cos Fi
Min/Max Water Level Alarm
Phase Failure Protection
Automatic Failure Restart System
Max Hourly Pump Start Limit
24H Timer Start/Stop
Alarm Outputs
