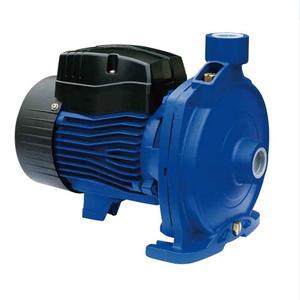

BIANCO Cast Iron Centrifugal Pump Clean Water 2.0 SERIES

BIA-FC750T 7.5 10.0 56m 900lpm 415 2" 2" Features:

Mains frequency: 50Hz
P2(kW): 3.0 (Shaft Power)
Current: 8.2 amps
Motor duty: Continuous
Motor type: Asynchronous, TEFC
Ingress protection: IP X4
Insulation class: F
Liquid Type: Clean Water
Clean water temperature range: 2 – 60o C
Maximum ambient temperature: 40o C
Maximum operating pressure: 8 bar Material:

Pump Body: Cast Iron HT200
Impeller: Stainless Steel 304
O rings: Nitrile
Corrosion resistant cast iron pump body and bracket cover with cataphoresis treatment
304 stainless steel shaft
Mechanical shaft seal
TEFC motors
Motor support foot Applications:

Industrial wash down
Water transfer
Tank filling
Fire fighting
HVAC
Circulation
Pressure boosting

(Cataphoresis is an electrochemical coating process for metallic surfaces widely used in the industry due to its penetration and long life, either as a priming coat or finished paint for corrosion resistance)

12 Month Warranty
