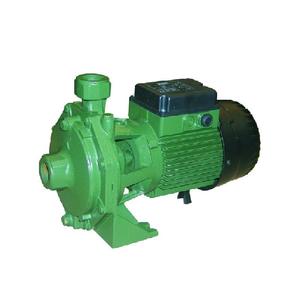

DAB K Series Single Impeller Centrifugal Pump

Model kW HP Max Volume Max Head Inlet Outlet Voltage K20-41M 0.37 0.5 100lpm 22m 1" 1" 240 K30-70M 0.75 1.0 120lpm 31.8m 1" 1" 240 K30-100M 1.1 1.5 180lpm 29.2m 1 ½" 1" 240 K36-100M 1.85 2.5 180lpm 34.9m 1½" 1" 240 K36-100T 1.85 2.5 180lpm 34.9m 1 ½" 1" 415 K12-200M 0.75 1.0 280lpm 18.4m 1 ½ 1 ½ 240 K12-200T 0.75 1.0 280lpm 18.4m 1 ½ 1 ½ 415 K14-400M 1.85 2.5 650lpm 19m 2" 2" 240 K14-400T 1.85 2.5 650lpm 19m 2" 2" 415 K36-200T 2.2 3.0 300lpm 36.6m 2" 1¼ 415 K55-200T 4.0 5.5 335lpm 54m 2" 1 ¼ 415 K28-500T 4.0 5.5 650lpm 35m 2½ 2" 415 K40-400T 5.5 7.5 500lpm 50.5m 65mm 50mm 415 K50-400T 7.5 10.0 550lpm 62m 65mm 50mm 415 K50-800T 11.0 15.0 1300lpm 58m 80mm 65mm 415
Construction:

Constructed from high quality ductile iron for corrosion resistance.
Stainless Steel Driving Shaft Carbon Ceramic Mechanical Seal.
Closed Motor, Cooled by external Ventilation.
Built in thermal overload protection 2 year pump parts and labour warranty Applications:

They are used in the domestic and industrial fields as well as in agriculture for:
Water circulation for industrial and domestic applications
Car washing
Tank emptying
Gardening
Fountains
Irrigation
Vat washing 2 Year Parts and Labour warranty.
