Omnipure Undersink with inline GAC Filter Kit
US10K/1
The success of the K-Series filter is directly attributable to the innovative Quick
Connect™ fittings that are incorporated into the design. These fittings are unique in
two ways. First, they allow for the installation of the inline filter in a matter of seconds.
Inlet and outlet tubes are simply snapped into place and secured using a patented collet
system. Second, the fittings are molded directly into the filter body and cap as a single
unit. This reduces the chance for weeping or seepage. Cap and body are spin-welded
together producing a smooth, consistent seal without the use of glues or binders that can cause contamination. The result of these design and production techniques is a reliable filter that is fast and easy to install.
One of the primary uses of this product is as a system component. The benefit is derived from the fitting being molded directly into the filter cap, greatly reducing clearance. The K-Series filter is available in 6", 8", 10", 12" or 14" lengths manufactured in 2" or 2.5" diameters. The true benefit is that systems can be designed to incorporate the various
lengths and diameters - either all the same size or intermixed - to meet specific filtration needs. Specifications:
Normal operating maximum pressure : 900Kpa (125 psi)
Temperature : 35-100'F (2-38'C)
Flow rate : 0.50 GPM (1.9 LPM) Features:

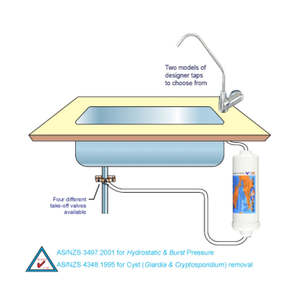

This Undersink filter unit comes standard with these features and options:
Omnipure K5428 inline Filter
Tap
Take off Valve (please see below)
Take-off valve options:
SV3 saddle valve 3 parallel (used with metal piping)
SV6 saddle valve 6 G clamp (used for poly butylene)
SV5 plumber delight take off valve (½" BSP)
DWTO dish washer tap take off tee 20mm m with ¼" BSP
