TREVOLI - Whole House UV Option 5 - 20" Filters For Rainwater Tank/Bore/Well
UV-OPT5
TREVOLI Ultraviolet Water Steriliser - for large homes. This UV system destroys 99.99% of Harmful micro-organisms, including E-coli, Cryptosporidium, Campylobacter and Giardia. Cost effective, environment friendly disinfection of water without chemicals. Specifications:
Nominal recommended flow: 90 LPM (30 mJ/cm2)
Maximum recommended flow: 168 LPM (16 mJ/cm2)
Council recommended level - max flow: 66 LPM (40 mJ/cm2)
2 x 55watt lamps = 110 watts
Dimension: 910mm long - 5" Dia
Port size 1"
Temperature range-2-40 degrees Features:

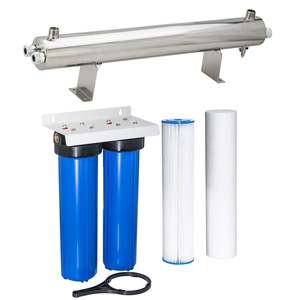

This UV option includes:
1 x 110 Watt UV Can complete with 2x UV lamps, 2x quartz sleeves & 1x regular ballast and 1x deluxe countdown timer ballast
2 x 20" Jumbo Big Blue water filter Housing Kits (BB20)
1 x 20" Jumbo Pleated 20 Micron
1 x 20" Jumbo Polyspun 1 Micron
1 x 700mm stainless connection hose (BB20 housing to UV can)
1 x Integrated mounting bracket (available in s/steel)
Spanner Optional Features:
Optional stainless steel bracket
Optional in-built stand
Optional pressure gauge Applications:
This is the most cost effective and efficient method For the treatment of Biological contaminated water containing "faecal coliforms" caused by Birds, possums on exposed gutters and Live stock faecal run off into streams or shallow Bores. Additional Information:
Why do we need Water Filters?
Giardia / Cryptosporidium
Spare Filtration Cartridges and UV Bulbs
Two Year Back to Base Warranty
Pro Rata Warranty on UV Lamp
It is highly recommended a surge protector is installed (please see dropdown menu) to prevent surges and power cuts damaging the UV unit. This will effect the outcome of the warranty for the ballast and lamp.
How to set up your UV can
