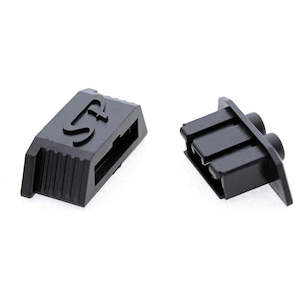

SP Dynamo Hub Connector Set

Male / Female connector set for SP Dynamo hubs.

How do I connect my wires to the hub?

- Follow the diagram to connect a single device (one headlight or one charger)
- To connect two devices, you want to connect them to the hub in parallel

- Strip about 20mm of insulation from all 4 wires
- Take one charger wire and one headlight wire and twist them together
- Twist together the remaining two wires
- Use these two combined wires to make the connection the same way as with one device
