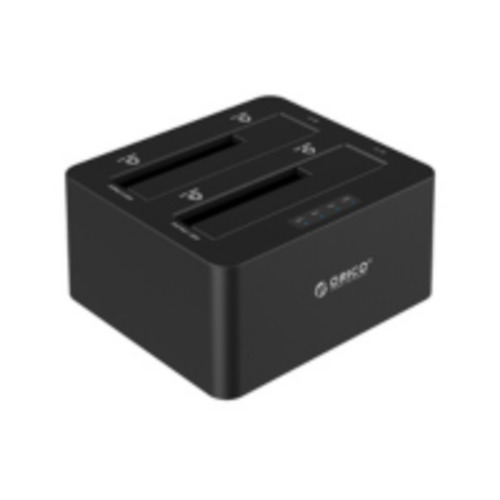

ORICO 6629US3-C Dual Bay USB 3.0 HDD Dock Black | Wty
The ORICO-6629US3-C is a certified refurbished dual-bay external hard drive docking station that accepts two 2.5-inch or 3.5-inch SATA drives simultaneously—because it supports both HDDs and SSDs up to 12TB per bay (24TB total), it covers virtually every storage task from everyday file access to large-scale data archiving. Transfer speeds reach 5Gbps via USB 3.0 with UASP support adding a further ~20% gain, which means moving large files is noticeably faster than on older USB 2.0 docks. Tested by our technicians in February 2026, this unit delivers reliable plug-and-play performance with no driver installation required across Windows, macOS, and Linux. Ideal For
- IT administrators managing data migrations—clone a full drive offline at 60–80 MB/s without tying up a workstation, because the standalone clone function operates independently of any host computer
- Home users archiving large photo or video libraries—simultaneously access a source drive and a backup drive from one USB connection, eliminating the need to swap drives repeatedly
- Small business owners running routine backups—duplicate customer records or accounting databases directly between two drives, therefore reducing backup windows during off-hours
- Data recovery technicians—test suspect drives in removable bays before committing to a full system reinstall, saving time when diagnosing failing storage Key Features & Benefits
- Standalone offline cloning: Insert source into Slot 1 and target into Slot 2, switch to CLONE mode, and hold START for 3–5 seconds—no PC required, which means cloning continues unattended while staff focus on other tasks
- 4-stage LED progress indicators: Sequential 25%, 50%, 75%, and 100% lights show clone progress at a glance, eliminating guesswork during long duplication jobs
- Universal SATA compatibility: Accepts SATA I, II, and III drives from Samsung, WD, Seagate, and all standard brands, therefore no compatibility research is needed before inserting a drive
- Auto-sleep function: Enters low-power mode after 15–30 minutes of inactivity, reducing wear on inserted drives during idle periods
- Built-in safety protections: Overvoltage, short-circuit, peak voltage, interference, and leak-current safeguards protect both the dock and the drives connected to it Common Questions Can I access both drives at the same time via USB?
Yes. In USB mode, both bays are simultaneously accessible from your host computer as two separate drives—which means you can drag files between them, run backups, or compare drive contents without switching cables. Does the clone function work with SSDs as well as HDDs?
It does. Because the dock communicates via SATA interface regardless of drive type, you can clone an HDD to an SSD or vice versa, provided the target drive capacity equals or exceeds the source drive. How does a refurbished dock compare to buying new?
In our experience handling hundreds of ORICO units, the docking mechanism and USB circuitry on these models show minimal wear over time—the moving parts are limited to the drive slots. A verified refurbished unit that passes our 40-point inspection performs identically to new hardware at a significantly lower price point. Technical Specifications
At a Glance
- Type: Dual-bay external HDD/SSD docking station — black ABS plastic
- Performance: USB 3.0 (5 Gbps) with UASP; offline clone speed 60–80 MB/s
- Storage support: 2× SATA I/II/III bays, 2.5-inch and 3.5-inch, up to 12TB per slot (24TB total)
- Host interface: SuperSpeed USB 3.0 Type-A, backward compatible with USB 2.0 and 1.1
- Power: 12V/3A DC via included AC adapter; auto-sleep after 15–30 minutes inactivity
- Dimensions: 132 × 117.5 × 65 mm
- Weight: 670 g
- Certifications: CE and FCC approved
- Best use: Drive cloning, simultaneous dual-drive access, data backup, IT recovery workflows
- Not recommended for: RAID configurations or enterprise NAS hot-swap environments In the Box
- 1× ORICO 6629US3-C Dual-Bay USB 3.0 HDD Docking Station
- 1× 12V/3A AC Power Adapter
- 1× 1 m USB 3.0 Type-A Cable
- 1× User Manual Operating System Compatibility
Compatible (no drivers needed): Windows XP through 11, macOS 9.1 and above, and Linux — plug-and-play recognition across all three platforms makes this suitable for mixed-OS environments. Limitation: UASP speed benefits apply only on host systems and cables that support the protocol; older USB 3.0 controllers may fall back to standard BOT mode. Cosmetic Condition Guide
Excellent Grade: Unit shows only minimal signs of previous use. Housing and external surfaces have at most
