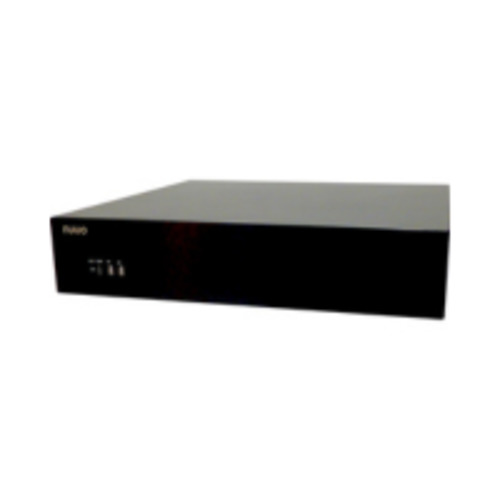

NUUO NP-8160 16-Channel 8-Bay NVR H.265 Linux Embedded Video Recorder
The NUUO NP-8160 NVRsolo Plus is a certified refurbished 8-bay network video recorder featuring 2GB DDR3 RAM, 8 x 3.5" SATA II drive bays supporting up to 128TB total storage, 16 base camera licences (expandable to 32 channels), H.265/H.264 compression with 200 Mbps throughput, dual Gigabit Ethernet ports, HDMI and VGA outputs, and a compact rack-mountable chassis measuring 90mm x 432mm x 440mm and weighing 7kg. This Linux-based NVR delivers enterprise-grade surveillance capabilities at a fraction of the cost of new equipment, making it ideal for businesses seeking reliable security solutions without compromising on performance. Professional Surveillance Applications
This verified refurbished NVR system excels in commercial security environments including retail stores, warehouses, office buildings, educational facilities, and hospitality venues. The expandable 32-channel capacity accommodates growing security needs, whilst the robust 8-bay design with RAID 0/1/5/10 support ensures your critical surveillance footage remains protected. Remote access capabilities through web viewer, live monitoring, and playback systems allow security personnel to manage surveillance operations from anywhere, providing peace of mind for business owners and facility managers. Key Features and Benefits
- H.265 Video Compression: Advanced encoding reduces bandwidth usage and storage requirements by up to 50% compared to H.264, maximising recording time whilst maintaining exceptional video quality
- Massive Storage Capacity: Eight hot-swappable drive bays support up to 16TB per drive for a total of 128TB, accommodating extended retention periods for high-resolution footage
- Flexible RAID Configuration: Built-in RAID 0, 1, 5, and 10 support protects against drive failure and ensures continuous operation of critical security systems
- Dual Network Connectivity: Two Gigabit Ethernet ports provide network redundancy and load balancing for uninterrupted surveillance streaming
- Multi-Channel Decoding: Handles 480fps at 1080p or 120fps at 4K resolution, enabling smooth playback of multiple camera feeds simultaneously
- Dual Monitor Support: HDMI and VGA outputs allow simultaneous display on two screens for enhanced monitoring capabilities in control rooms
- Enterprise Alarm Integration: 16-channel digital input and 4-channel relay output support comprehensive alarm system integration for automated security responses
- Remote Management Suite: Complete remote access through web viewer, live monitoring, playback, and backup systems ensures 24/7 surveillance management from any location
- Fisheye Dewarp Technology: One-channel local fisheye dewarping transforms 360-degree camera footage into usable panoramic views
- Expandable Licensing: Start with 16 channels and scale up to 32 channels as your surveillance requirements grow Technical Specifications
- Processing Power: Linux embedded operating system with DDR3 2GB RAM
- Storage Configuration: 8 x 3.5" SATA II bays, maximum 128TB total capacity with RAID 0/1/5/10 support
- Network Throughput: 200 Mbps recording/playback with dual Gigabit Ethernet (10/100/1000 Mbps)
- Video Support: H.265/H.264/MJPEG compression, 32 channels maximum, 1920x1080 maximum recording resolution
- Connectivity: 2 x Gigabit LAN, 3 x USB 2.0, 1 x USB 3.0, 1 x eSATA, audio in/out (3.5mm)
- Display Outputs: HDMI and VGA supporting resolutions up to 1920x1080
- Alarm I/O: 16-channel digital input (dry contact), 4-channel relay output (3A 24VDC/120VAC max)
- Physical Dimensions: 90mm (H) x 432mm (W) x 440mm (D), 7kg weight without drives
- Power Requirements: AC 100-240V 47-63Hz, 35W without HDD, 250W maximum with drives
- Operating Environment: -10°C to 55°C temperature range, 10%-90% humidity Linux Operating System Advantages
The embedded Linux operating system delivers exceptional stability and security compared to Windows-based alternatives, with minimal vulnerability to viruses and malware that commonly target surveillance systems. Linux requires fewer system resources, ensuring consistent performance even under heavy recording loads, whilst the dedicated embedded design eliminates unnecessary background processes that could interfere with critical surveillance operations. However, users accustomed to Windows interfaces may require a brief familiarisation period with the system's interface and configuration tools. Cosmetic Condition Guide
Excellent Grade units display minimal signs of previous use with only light surface marks that are barely noticeable, with no deep scratches, cracks, paint chips, or broken/missing pieces. Good Grade units are fully tested and fully functional but may have light scratches on the external body, more visi
